1000 kg/hour granulation complex LK 1000
- Product Code: lg 1000
OUR COMPANY IS MANUFACTURING, INSTALLATION AND FURTHER SERVICE OF GRANULATION AND BRIQUETTING LINES OF VARIOUS TYPES OF RAW MATERIALS
One of the options - lines for pelletizing wood of various species
We bring to your attention the modernized energy-saving equipment for the production of wood pellets (electricity consumption is 30-40% less than analogues)
Raw material:
The forest is round, branches with a diameter of up to 170/220/300 mm
Sawmill waste: sawdust, slab

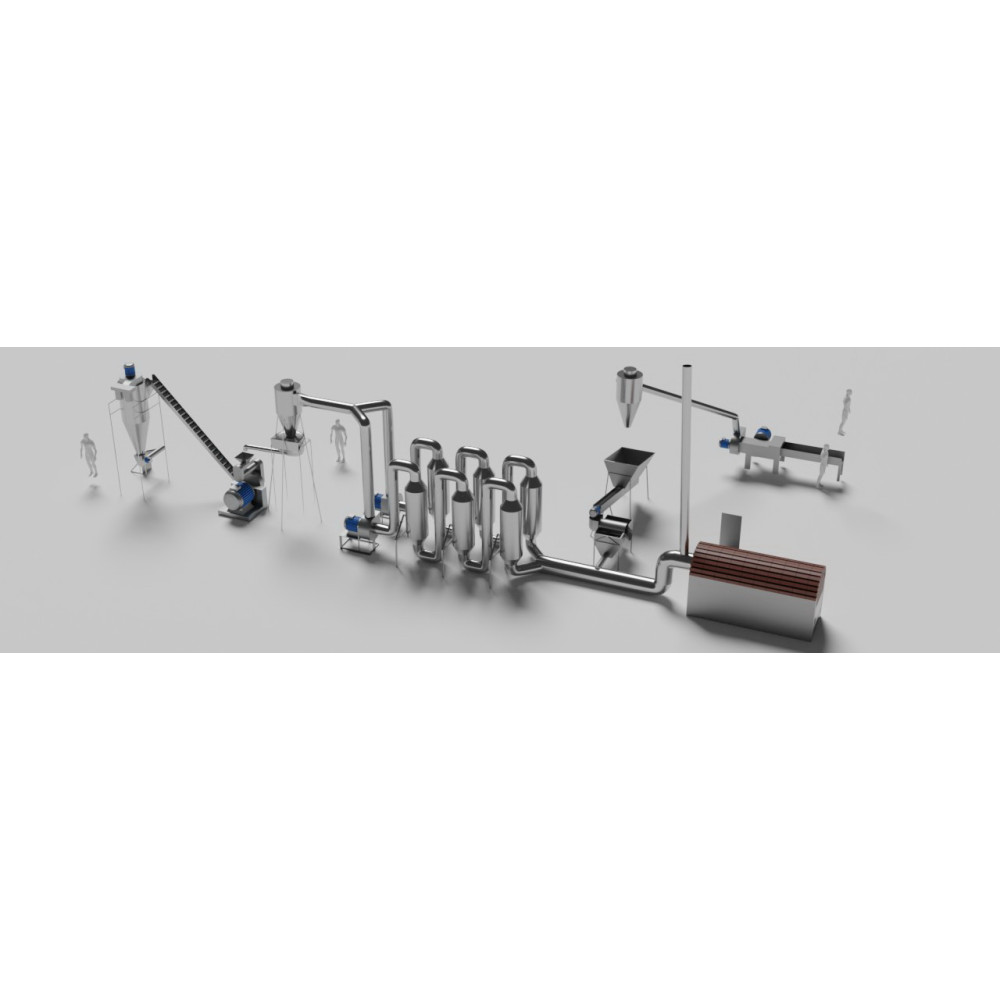

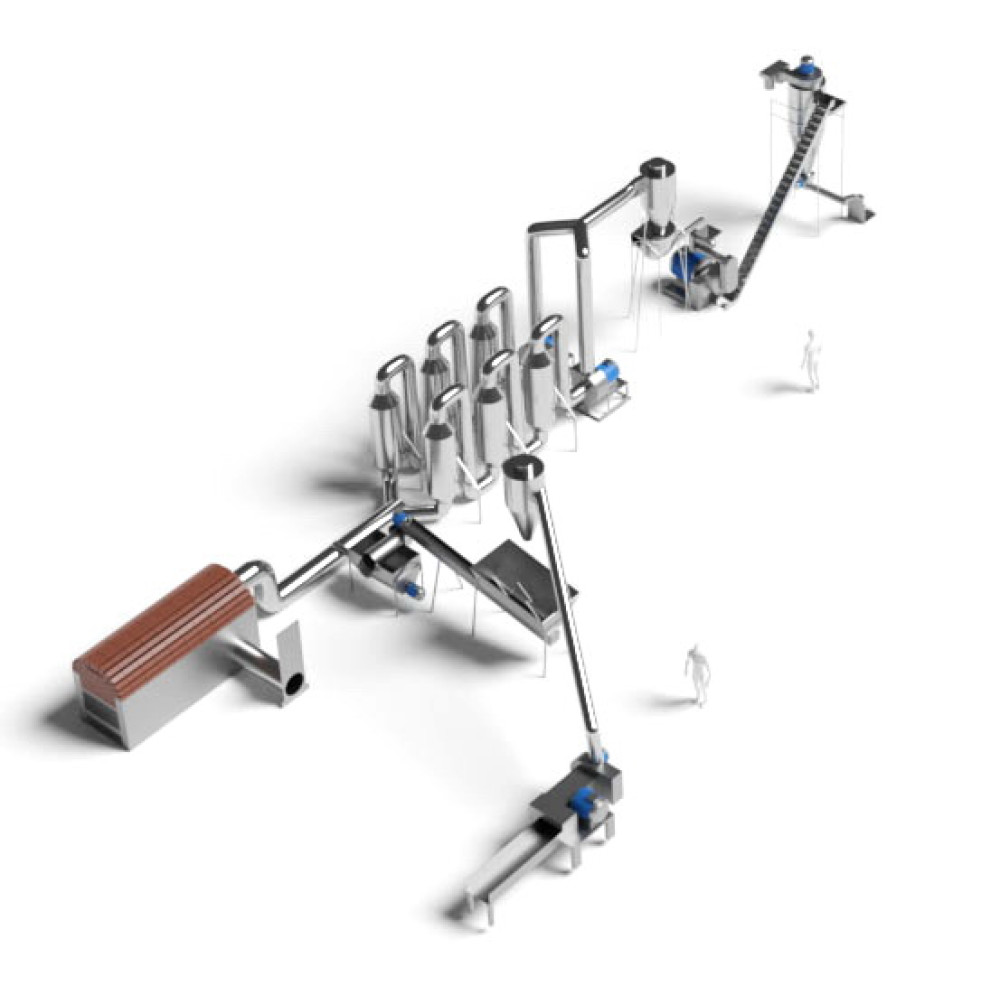

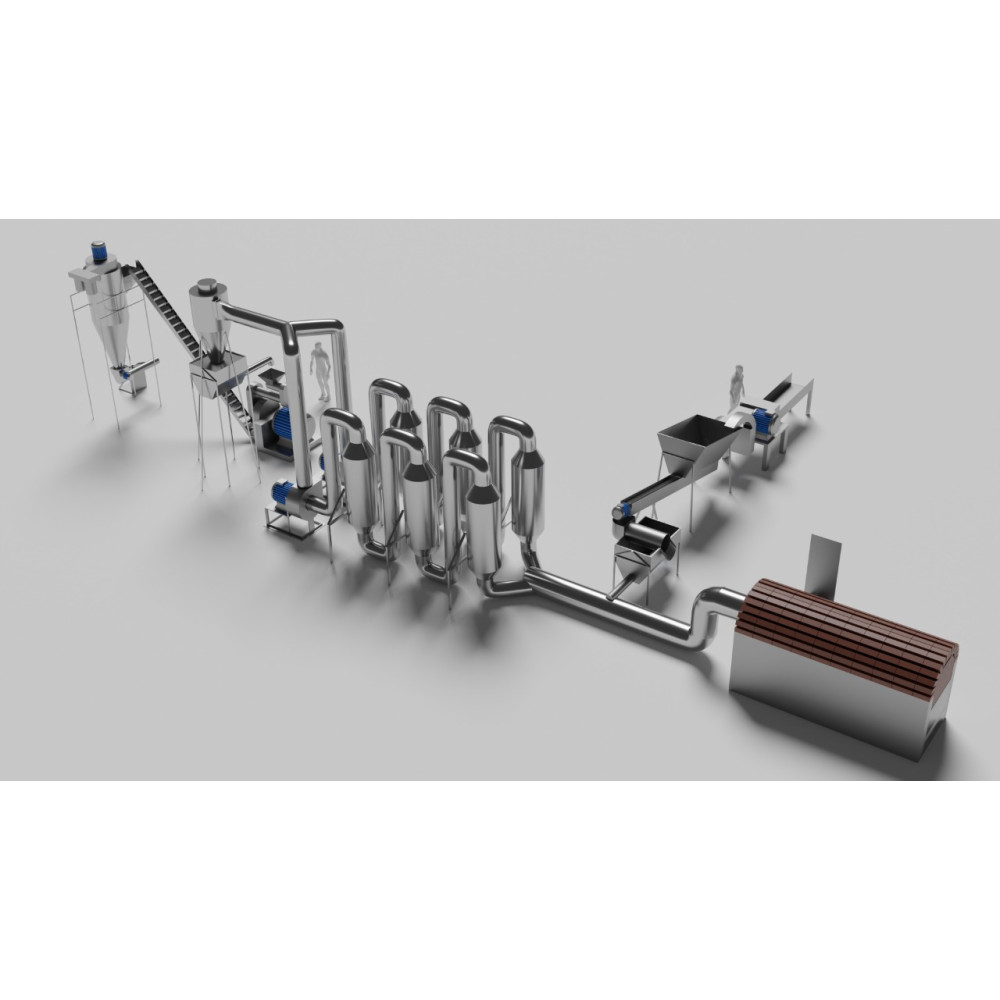

COMPOSITION OF THE LINE:
1. Milling crusher 55/75/90 kW with raw material pneumatic transport system
with a power of 7.5 kW.
2. Bunker or auger for loading raw materials into the drying dispenser
· 3. Solid fuel heat generator with a capacity of 1 MW.
4. Aerodynamic drying complex up to 1500 kg per hour 22/30 kWh
5. Node granulation. The storage bunker - the batcher of a granulator with a stirrer.
Press granulator OGM-1,5 75/90 kW
6. Noriya H-10 raising the granules into the cooler (7 m long)
7. Cooling column with a sieving section and dosed feeding into bags 5 kW
· 8. Line control cabinets and electrical equipment, temperature sensors with an alarm system, cabling.
· Total power of installed engines. From 175 kWh. Power consumption from 120-125 kWh
It is possible to work in two stages, if the production capacities for light do not allow.
Crushing from 40 kWh
Granulation from 85-95 kWh
Productivity up to 1000-1200 kg \ hour (real)
The price depends on the configuration.
