500 kg/h GRANULATION LINE LG-500

OUR COMPANY IS MANUFACTURING, INSTALLATION AND FURTHER SERVICE OF LINES FOR GRANULATION AND BRIQUETTING OF VARIOUS TYPES OF RAW MATERIALS

One of the options is wood granulation lines of various species up to 500 UAH per hour

• We bring to your attention modernized energy-saving equipment for the production of wood pellets (electricity consumption is 30-40% less than analogues)

Raw material:

The forest is round, branches with a diameter of up to 170/220/250 mm

Sawmill waste: sawdust, slab

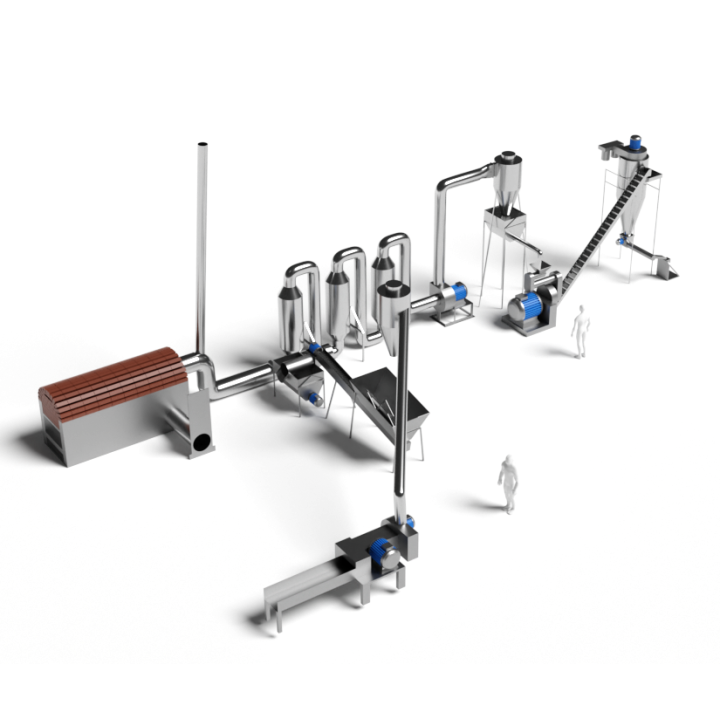

COMPOSITION OF THE LINE:

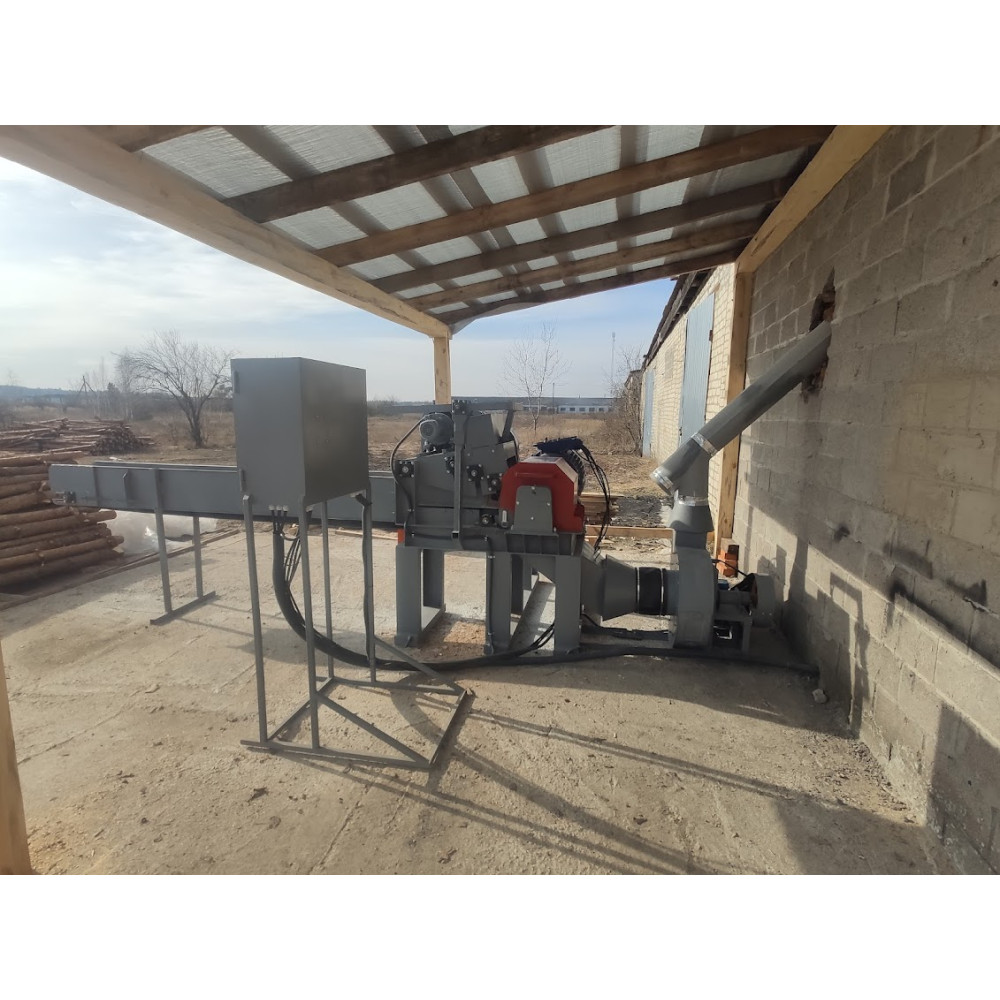

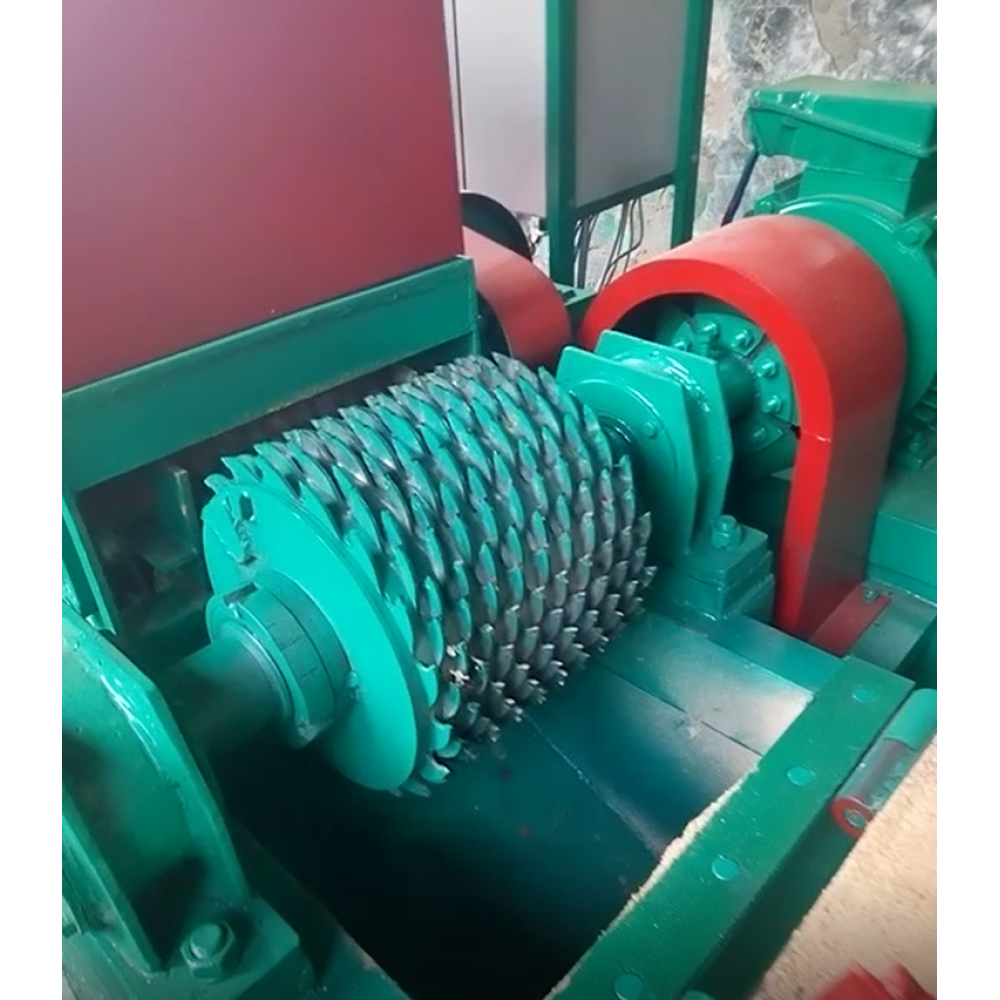

• 1. Milling crusher 55/75/90 kW with raw material pneumatic transport system

with a power of 7.5 kW.

• 2. Bunker or auger for loading raw materials into the drying batcher

• 3. Solid fuel heat generator with a capacity of 0.7 MW.

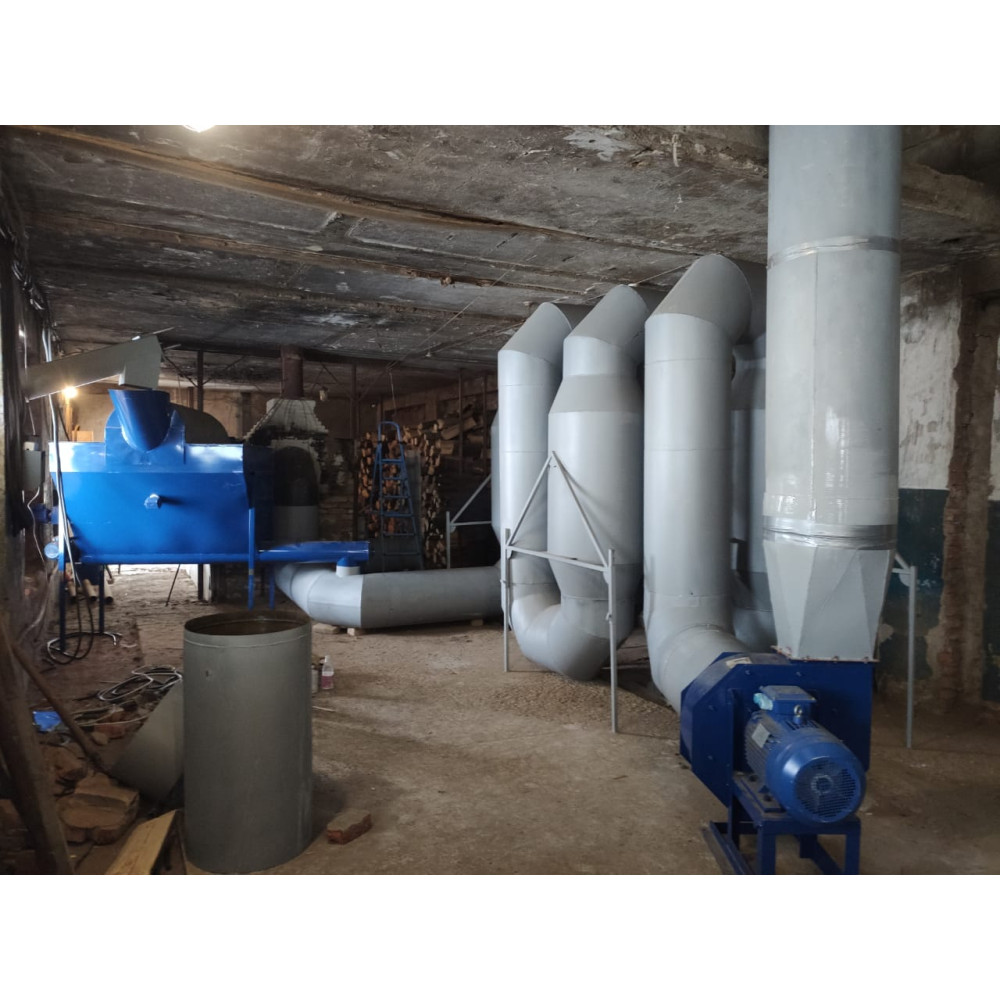

• 4. Aerodynamic drying complex up to 700 kg per hour 11/15 kWh

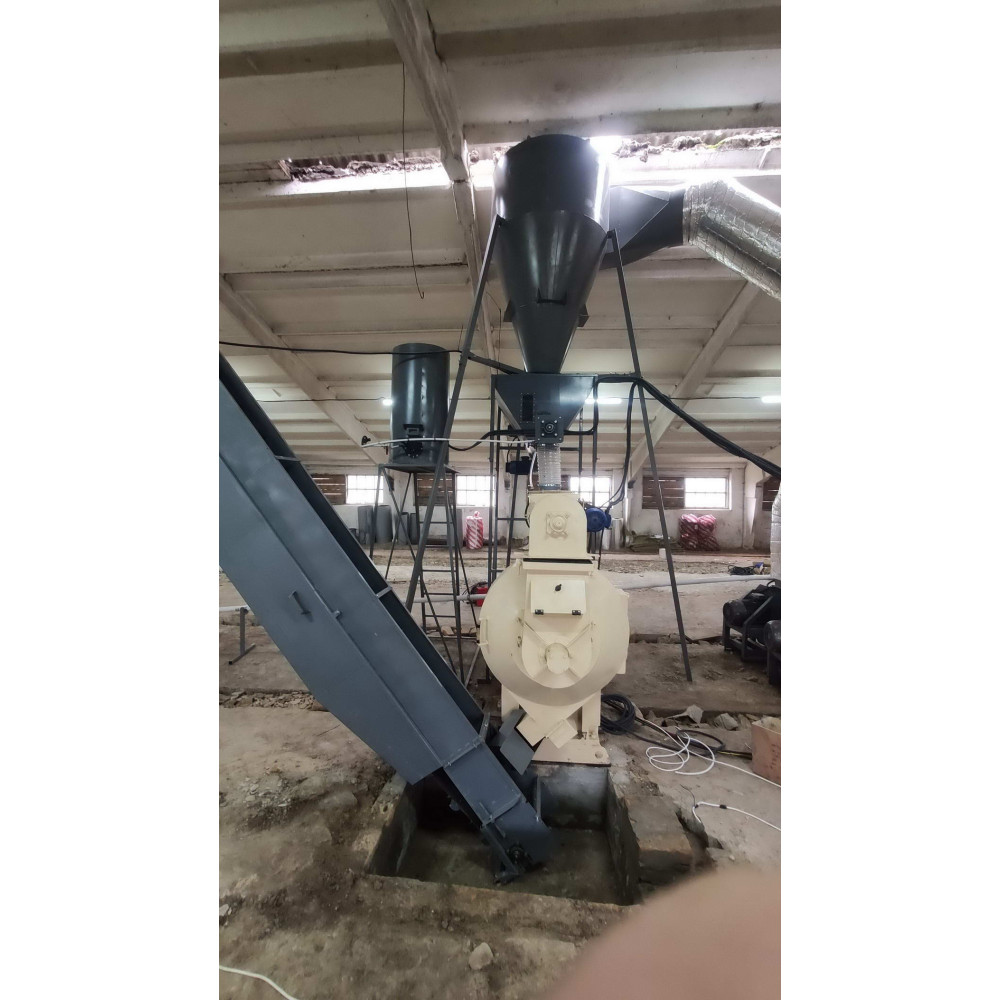

• 5. Granulation unit. The storage bunker - the batcher of a granulator with a stirrer.

Press granulator OGM-0.8 45/55 kW

• 6. Noria H-10 for lifting granules into the cooler (7 m long)

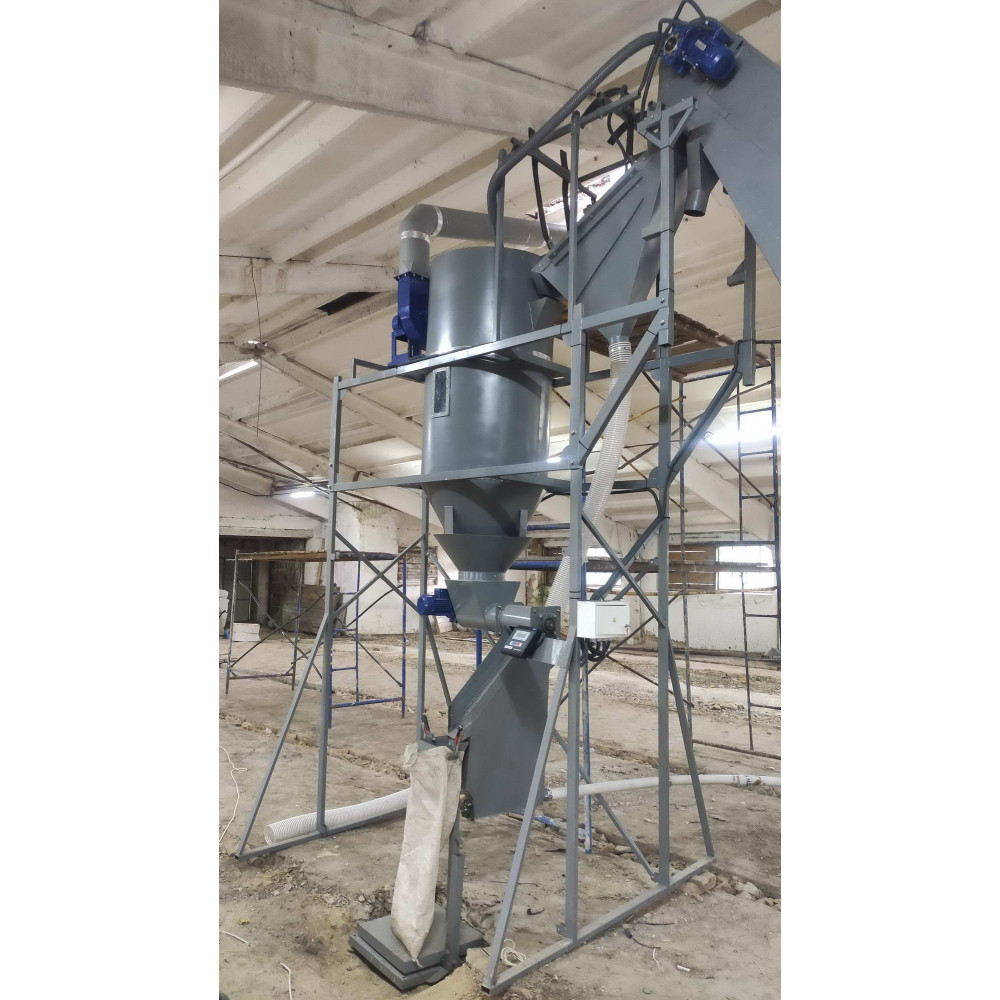

• 7. Cooling column with sifting and metered feeding into bags 5 kW

• 8. Line and electric control cabinets

• ktroequipment, temperature sensors with an alarm system, cabling.

•

The total power of installed engines. From 130 kWh.

Power consumption from 100 kWh

It is possible to work in two stages, if the production capacities for light do not allow.

Crushing from 45 kWh

Granulation from 60-70 kWh

• Capacity up to 500 kg

The price depends on the configuration.

telephone information:

+38 093 553 93 05

+38 050 400 10 44

Alexander.
