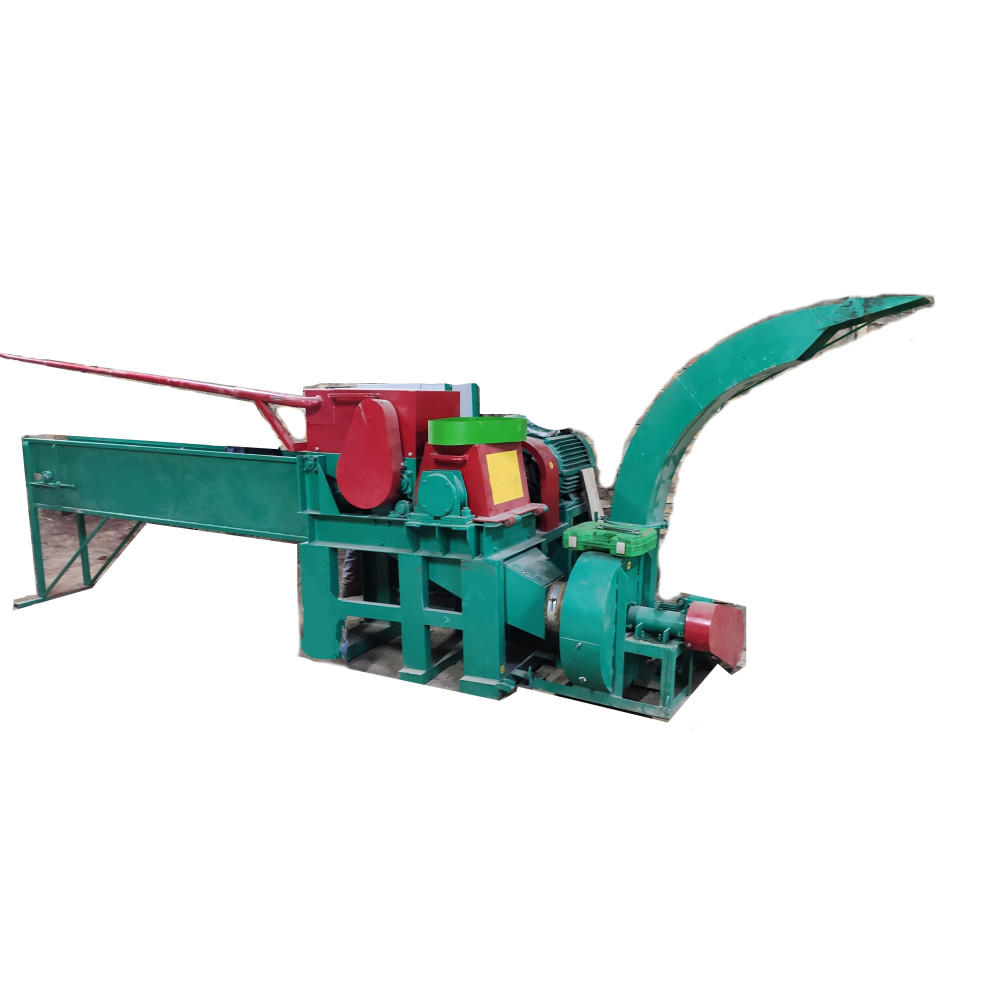

Milling crusher, chipper of waste wood, branches, round timber into sawdust
Crusher milling , wood waste chopper, branches, round timber and into sawdust
A unique crushing complex that allows you to grind large waste wood (branches, trimmings, boards up to 300 mm wide, round timber up to Ø1 7 0 / Ø 220 / Ø 300 mm) into a fine fraction of 1-3 mm (sawdust) for subsequent granulation or briquetting or use of material in as fuel in boilers, or for the manufacture of particle board, pallet bars, etc.
What is the uniqueness.
Milling type of crushing allows:
- get a fine fraction (sawdust) from various wood waste in 1 pass
- at the same time, the moisture content of the raw material can reach 60-70% and this only facilitates the process of crushing , unlike hammer crushers with a screen that are significantly slowed down by wet raw materials or can not cope with it at all
- crushing by milling cutters is more economical in terms of energy consumption
- belt feed (can be extended to transport waste to the crusher)

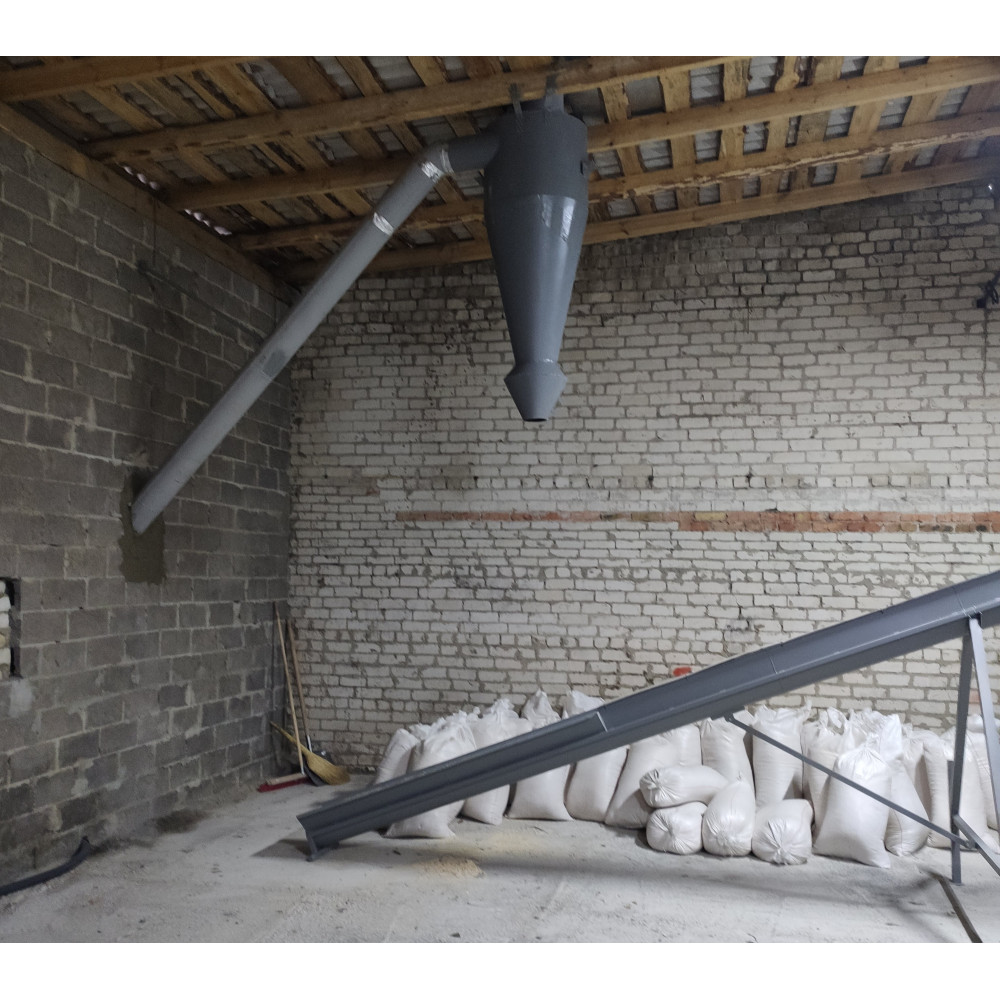

- pneumatic load (can transport sawdust to a distance of 15 meters)
Now you do not need to buy two crushers and a hopper, you buy one grinder and save money, time and electricity costs and get fine sawdust in one pass!
Technical characteristics of the crushing complex for grinding wood waste:
Type : stationary
Drive : electric motor - 30 - 1 32 kWx3000 rpm
Number of saws:
- 21 -39 pcs.
Innings:
-belt conveyor (can be extended up to 20 meters)
Automation:
- control panel with automatic feed regulator
Unloading of raw materials:
- pneumatic, fan 7.5 kW
Dimensions :
- length 5000 mm
- height 2400 mm
- width 2100 mm
Weight: 1900 -2200 kg.
Outlet fraction : sawdust 1-3 mm
Productivity 600 - 1200 kg. / hour depending on the model
